Product Details
Place of Origin: CHINA
Brand Name: TIMKEN / NSK / NTN / FSKG / KBE / OEM
Certification: ISO9001-2000 / SGS / BV / CE / IAF
Model Number: 316639 AG
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs-5pcs
Price: 0.1-200USD
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING
Delivery Time: 3-7Days After Deposit
Payment Terms: 30% Deposit , Balance After BL Copy
Supply Ability: 100000pcs/month
Model No.: |
316639 AG |
316639 AG Bearing Size: |
490*694*174mm |
316639 AG Bearing Kg: |
210kg |
Quality: |
ABEC-5 |
Material: |
Gcr15 Chrome Steel |
Original: |
Wuxi |
Model No.: |
316639 AG |
316639 AG Bearing Size: |
490*694*174mm |
316639 AG Bearing Kg: |
210kg |
Quality: |
ABEC-5 |
Material: |
Gcr15 Chrome Steel |
Original: |
Wuxi |

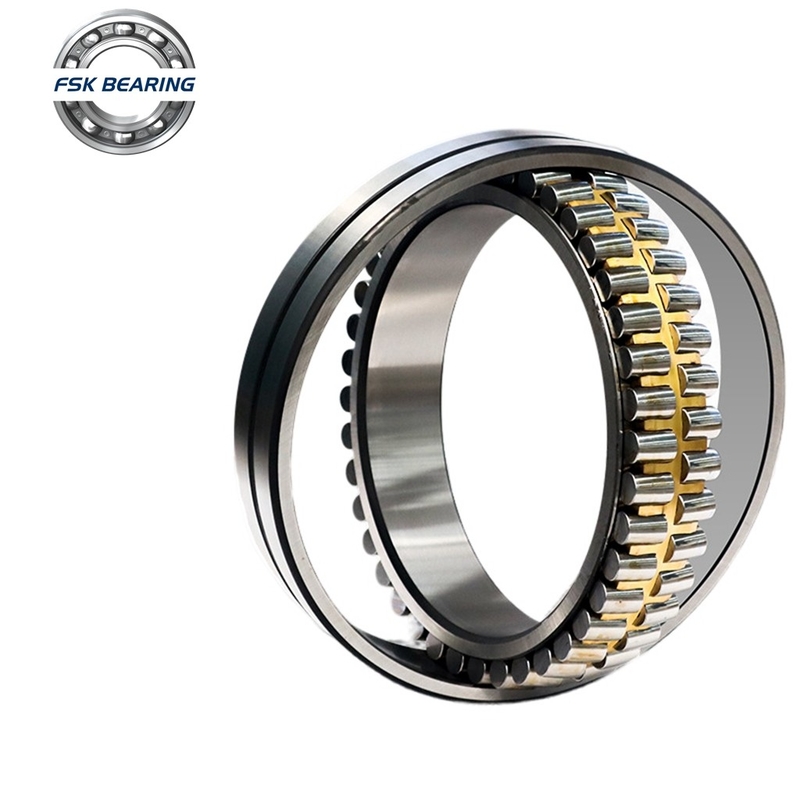

ABEC-5 316639 AG Double Row Cylindrical Roller Bearing 490*694*174mm
Bearing Specification :
| FSK BEARING Model Number | 316639 AG |
| Part Name | Cylindrical Roller Bearing |
| Application | Rolling Mill Bearing |
| Material | Gcr15 Chrome steel |
| Cage | Brass Cage/Iron Cage |
| Row | Double Row |
| Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Dimensions(mm)(d*D*b) | 490*694*174mm |
| Weight / Mass ( KG ) | 210kg |
| HS Code | 8482800000 |
Bearings Detailed Pictures
Same Series Bearings We Do:
| Bearing Number | d | D | H | m |
| NNU 4152 M/W33 | 260 mm | 440 mm | 180 mm | 110 KG |
| NNU 4152 K30M/W33 | 260 mm | 440 mm | 180 mm | 110 KG |
| NNU 4156 M/W33 | 280 mm | 460 mm | 180 mm | 120 KG |
| NNU 4156 K30M/W33 | 280 mm | 460 mm | 180 mm | 120 KG |
| 315976 B | 280 mm | 470 mm | 200 mm | 150 KG |
| BC2B 320119 | 300 mm | 460 mm | 180 mm | 118 KG |
| NNU 4160 K30M/W33 | 300 mm | 500 mm | 200 mm | 155 KG |
| NNU 4160 M/W33 | 300 mm | 500 mm | 200 mm | 155 KG |
| NNUP 4964 B/HB1W33 | 320 mm | 440 mm | 118 mm | 57 KG |
| BC2B 322216 | 320 mm | 460 mm | 120 mm | 70 KG |
| 315583 C | 320 mm | 480 mm | 175 mm | 115 KG |
| NNU 4164 F | 320 mm | 540 mm | 218 mm | 200 KG |
| NNU 4164 K30F | 320 mm | 540 mm | 218 mm | 200 KG |
| NNU 4168 K30M/W33 | 340 mm | 580 mm | 243 mm | 260 KG |
| NNU 4168 M/W33 | 340 mm | 580 mm | 243 mm | 260 KG |
| 314563 | 350 mm | 500 mm | 190 mm | 118 KG |
| BC2B 319878 | 350 mm | 520 mm | 150 mm | 220 KG |
| BC2B 320075 | 360 mm | 500 mm | 125 mm | 72 KG |
| BC2B 322217 | 360 mm | 500 mm | 125 mm | 80 KG |
| NNU 4172 K30M | 360 mm | 600 mm | 243 mm | 275 KG |
| NNU 4172 M | 360 mm | 600 mm | 243 mm | 275 KG |
| NNU 4876/HB1W33 | 380 mm | 480 mm | 100 mm | 44 KG |
| NNU 4876 K/W33 | 380 mm | 480 mm | 100 mm | 44 KG |
| BC2B 320041 | 380 mm | 540 mm | 200 mm | 145 KG |
| 316062 | 380 mm | 540 mm | 150 mm | 110 KG |
| BC2B 326131/HB1 | 380 mm | 540 mm | 130 mm | 100 KG |
| NNU 4176 M | 380 mm | 620 mm | 243 mm | 285 KG |
| NNU 4176 K30M | 380 mm | 620 mm | 243 mm | 285 KG |
| NNU 4880 K/W33 | 400 mm | 500 mm | 100 mm | 46 KG |
| NNUP 4880/HB1W33 | 400 mm | 500 mm | 100 mm | 45.5 KG |
| NNU 4880/HB1W33 | 400 mm | 500 mm | 100 mm | 46 KG |
| 314987 B | 400 mm | 560 mm | 205 mm | 160 KG |
| 314987 C | 400 mm | 560 mm | 205 mm | 160 KG |
| 315802 | 400 mm | 590 mm | 220 mm | 210 KG |
| BC2B 326880/HB1 | 400 mm | 600.19 mm | 200 mm | 200 KG |
| NNU 4180 K30M/W33 | 400 mm | 650 mm | 250 mm | 325 KG |
| NNU 4180 M/W33 | 400 mm | 650 mm | 250 mm | 325 KG |
| 316019 | 410 mm | 600 mm | 140 mm | 215 KG |
| NNU 4884/W33 | 420 mm | 520 mm | 100 mm | 48 KG |
| NNU 4884 K/W33 | 420 mm | 520 mm | 100 mm | 48 KG |
| BC2B 326137/HB1 | 420 mm | 580 mm | 130 mm | 110 KG |
| 313555 A | 420 mm | 580 mm | 160 mm | 125 KG |
| 313555 C | 420 mm | 580 mm | 160 mm | 125 KG |
| 313555 B | 420 mm | 580 mm | 160 mm | 125 KG |
| 314982 | 420 mm | 600 mm | 220 mm | 206 KG |
| 314391 | 420 mm | 620 mm | 200 mm | 220 KG |
| NNU 4184/316275 | 420 mm | 700 mm | 280 mm | 440 KG |
| NNU 4888 KM/W33 | 440 mm | 540 mm | 100 mm | 46 KG |
| NNU 4888 M/W33 | 440 mm | 540 mm | 100 mm | 46 KG |
| 316077 A | 440 mm | 620 mm | 225 mm | 217 KG |
| BC2B 316521 | 440 mm | 640 mm | 230 mm | 250 KG |
| NNU 4188 M/W33 | 440 mm | 720 mm | 280 mm | 450 KG |
| NNU 4188 K30M/W33 | 440 mm | 720 mm | 280 mm | 450 KG |
| NNU 4892 K/W33 | 460 mm | 580 mm | 118 mm | 75 KG |
| NNU 4892/W33 | 460 mm | 580 mm | 118 mm | 75 KG |
| 316739 A | 460 mm | 650 mm | 235 mm | 260 KG |
| NNU 4192 K30M | 460 mm | 760 mm | 300 mm | 535 KG |
| NNU 4192 M | 460 mm | 760 mm | 300 mm | 535 KG |
| 316848 A | 480 mm | 680 mm | 250 mm | 305 KG |
| 316189 | 480 mm | 700 mm | 260 mm | 348 KG |
| NNU 4196 M/W33 | 480 mm | 790 mm | 308 mm | 587 KG |
| NNU 4196 K30M/W33 | 480 mm | 790 mm | 308 mm | 587 KG |
| 316639 AG | 490 mm | 694 mm | 174 mm | 210 KG |
| 319254 | 500 mm | 650 mm | 130 mm | 120 KG |
| 314990 A | 500 mm | 680 mm | 225 mm | 250 KG |
| 314419 | 500 mm | 720 mm | 218 mm | 310 KG |
| NNU 41/500 M/W33 | 500 mm | 830 mm | 325 mm | 693 KG |
| NNU 41/500 K30M/W33 | 500 mm | 830 mm | 325 mm | 693 KG |
| 312844 | 529.91 mm | 870 mm | 335 mm | 830 KG |
| BC2B 316536 | 530 mm | 760 mm | 260 mm | 510 KG |
| BC2B 326064/HA1 | 530 mm | 780 mm | 225 mm | 735 KG |
| 315040 A | 530 mm | 780 mm | 250 mm | 400 KG |
| NNU 41/530 K30M/W33 | 530 mm | 870 mm | 335 mm | 790 KG |
| NNU 41/530 M/W33 | 530 mm | 870 mm | 335 mm | 790 KG |
| 316115 | 550 mm | 800 mm | 260 mm | 448 KG |
| BC2B 326061/HA1 | 560 mm | 735 mm | 170 mm | 165 KG |
| 313191 | 560 mm | 740 mm | 180 mm | 215 KG |
| NNU 41/560 K30M/W33X | 560 mm | 920 mm | 355 mm | 930 KG |
| NNU 41/560 M/W33 | 560 mm | 920 mm | 355 mm | 930 KG |
| BC2-8005/HB1 | 600 mm | 820 mm | 365 mm | 577 KG |
Our other Hot Sale Bearings
| INA TIMKEN NSK KOYO NACHI NTN ASAHI FYH | Tapered Roller Bearing | 30200.30300.32200.32300.32000.33000 |
| Inched | ||
| Deep Groove Ball Bearing | 6000.6200.6300.6400.6800 | |
| Miniature Ball Bearing | ||
| Truck Wheel Bearing | 800792 A VKBA 5412 566425.H195 BTH 0022 | |
| Automobile Wheel Bearing | VKBA1343 DAC34620037 BA2B633313CA etc | |
| Air Conditioner Bearing | 30BD219 30BD40 30BD5222 | |
| Clutch Release Bearing | 68TKA3506AR TK701A1 78TK14001AR 54TKA3501 | |
| Spherical Roller Bearing | 22200 22300 23000 CC CA E | |
| Cylindrical Roller Bearing | good at LINK BELT cylindrical roller bearings | |
| Pillow Block Bearing with Housing | UCP UCF UCT UCFL UCFC etc | |
| Needle Roller Bearing | Full types of needle roller bearings | |
| Printing Machine Bearings | F series with needle roller and cylindrical roller structure |
Our Company Photo:
About Us:
1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications
FAQ
|
Q:Are you a trader or manufacturer? |
| A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
| Q:What is your delivery time? | |
| A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
| Q:Can i request sample? | |
| A:Of course , sample is ok and we can give you a sample by free. | |
| Q:What's the shipping way? | |
| A:According to YOUR demands. | |
| Q:Can you accept OEM or ODM? | |
| A:Yes, of course. logo is also acceptable. | |
| Q:How is quality controlled? | |
| A:Quality is the key ! | |
| Our QC team and engineer team works through all the process from an order placed to shipped. | |
| Q: Can I come for a visit? | |
| You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
ABEC-5 316639 AG Double Row Cylindrical Roller Bearing 490*694*174mm, Get Cheap Price from China Bearing Factory Now !
