High Precision TRTB651 Thrust Tapered Roller Bearing For Oil Well Drill Pipe

High Precision TRTB651 Thrust Tapered Roller Bearing For Oil Well Drill Pipe

 Bearing Specification :

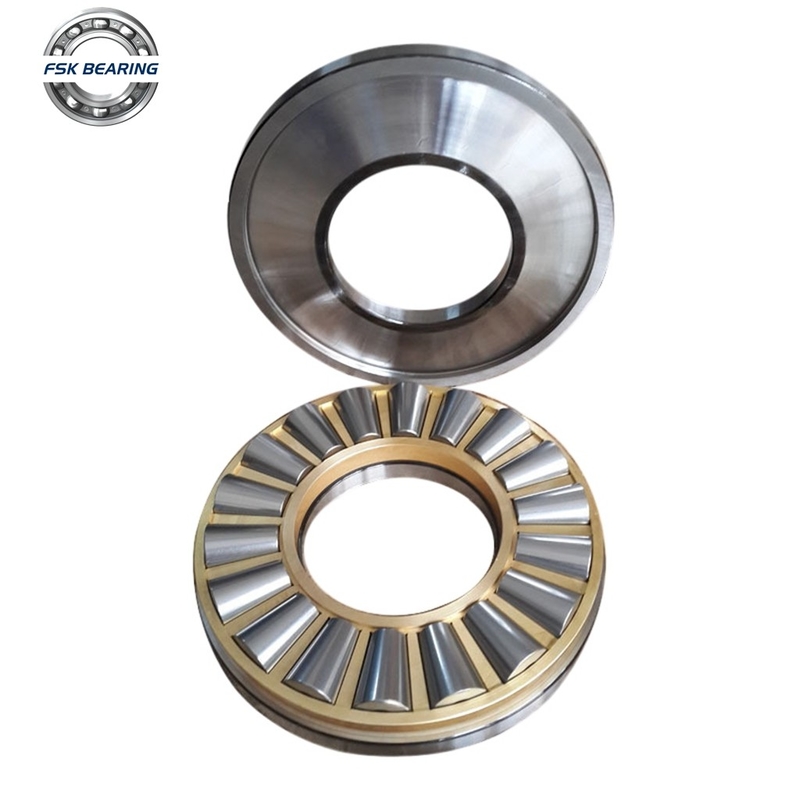

Bearings Detailed Pictures

Other Same Series Bearings We Do:

Bearing Number					d	D	H	m
T135					34.93 mm	76.2 mm	15.88 mm	0.37 KG
T135F					34.93 mm	76.2 mm	15.88 mm	0.4 KG
T1750					44.45 mm	84.73 mm	18.26 mm	0.49 KG
T200A					50.8 mm	109.54 mm	22.23 mm	1.04 KG
T2520					53.5 mm	117.48 mm	25.4 mm	1.3 KG
30TTHD013	30 TTHD 013				76.2 mm	161.93 mm	33.33 mm	0
T311					76.2 mm	161.93 mm	33.34 mm	3.47 KG
T311F					76.2 mm	161.93 mm	33.34 mm	3.54 KG
T411	T-1411	TRTB411	T-411	40 TTHD 015	101.6 mm	215.9 mm	46.04 mm	8.9 KG
T411F	T-411F				101.6 mm	215.9 mm	46.04 mm	8.9 KG
T441	T-1441	TRTB441	T-441	43 TTHD 019	111.76 mm	223.52 mm	55.88 mm	11.4 KG
T441F					111.76 mm	223.52 mm	55.88 mm	11.4 KG
T451	T-1451	TRTB451	T-451	45 TTHD 020	114.3 mm	250.83 mm	53.98 mm	14.2 KG
T520	T-1520	TRTB520	T-520	50 TTHD 024	127 mm	250.83 mm	55.56 mm	13.9 KG
F-530-A					127 mm	266.7 mm	58.74 mm	0
T511	T-1511	TRTB511	T-511	50 TTHD 025	127 mm	266.7 mm	58.74 mm	17.03 KG
T511F	T-511F				127 mm	266.7 mm	58.74 mm	17.8 KG
T511A	TRTB511A	T-511A			129 mm	266.7 mm	58.74 mm	17.8 KG
T9250FA					139.7 mm	546.1 mm	127 mm	191.33 KG
N-3247-A					152.4 mm	292.1 mm	76.2 mm	26.3 KG
T611	T-1611	TRTB611	T-611	60 TTHD 026	152.4 mm	317.5 mm	69.85 mm	28.35 KG
T611F					152.4 mm	317.5 mm	69.85 mm	29.3 KG
N-3255-A					152.4 mm	317.5 mm	88.9 mm	38.8 KG
XC2107					165.08 mm	304.8 mm	76.2 mm	26.3 KG
T651	T-1651	TRTB651	T-651	65 TTHD 029	165.1 mm	311.15 mm	88.9 mm	38.3 KG
T661	T-1661	TRTB661	T-661	66 TTHD 030	168.28 mm	304.8 mm	69.85 mm	23.53 KG
T691	T-1691	TRTB691	T-691	68 TTHD 031	174.63 mm	358.78 mm	82.55 mm	43.16 KG
T711	T-1711	T-711	70 TTHD 032		177.8 mm	368.3 mm	82.55 mm	48.4 KG
T711F	T-711F				177.8 mm	368.3 mm	82.55 mm	48.4 KG
T709	T-1709	TRTB709	T-709	70 TTHD 033	177.8 mm	431.8 mm	101.6 mm	86.3 KG
T7519	TRTB7519	T-7519			190 mm	355.6 mm	74.22 mm	35.9 KG
A-3783-B					190 mm	355.6 mm	91.82 mm	49 KG
N-3239-A					190.5 mm	368.3 mm	95.25 mm	53 KG
XC2108					203.15 mm	396.88 mm	130.18 mm	83.7 KG
T811	T-1811	TRTB811	T-811	80 TTHD 034	203.2 mm	419.1 mm	92.08 mm	65.48 KG
T811F					203.2 mm	419.1 mm	92.08 mm	69.3 KG
T811V					203.2 mm	419.1 mm	92.08 mm	65.5 KG
N-3263-A					206.38 mm	419.1 mm	120.65 mm	90.7 KG
XC760					206.38 mm	419.1 mm	120.65 mm	88.2 KG
T9020	TRTB9020	T-9020			228.6 mm	431.8 mm	88.77 mm	65.7 KG
T911	T-1911	TRTB911	T-911	90 TTHD 039	228.6 mm	482.6 mm	104.78 mm	98.25 KG
T911F					228.6 mm	482.6 mm	104.78 mm	97.9 KG
T911A	TRTB911A	T-911A	92 TTHD 039		234.95 mm	482.6 mm	104.78 mm	103 KG
T921F					234.95 mm	546.1 mm	127 mm	171 KG
T9250F					234.95 mm	546.1 mm	127 mm	164.84 KG
T921	T-1921	TRTB921	T-921	92 TTHD 043	235 mm	546.1 mm	127 mm	171 KG
N-3235-A	T-537504				241 mm	495.3 mm	127 mm	140 KG
N-3517-A					241.3 mm	495.3 mm	127 mm	137 KG
T1011	T-11011	TRTB1011	T-1011	100 TTHD 045	254 mm	539.75 mm	117.48 mm	147 KG
N-3243-A	T-539210				273.05 mm	552.45 mm	133.35 mm	173 KG
N-3259-A					273.05 mm	566.67 mm	177.8 mm	254 KG
N-3251-A	T-539211				273.05 mm	603.25 mm	146.05 mm	240 KG
N-3513-A					273.05 mm	603.25 mm	146.05 mm	235 KG
T1115	TRTB1115				279.4 mm	495.3 mm	133.35 mm	125 KG
T1120	T-11120	TRTB1120	T-1120	110 TTHD 047	279.4 mm	603.25 mm	136.53 mm	212 KG
T1120F					279.4 mm	603.25 mm	136.53 mm	212 KG
T1421	TRTB1421				355.6 mm	533.4 mm	101.6 mm	82.88 KG
T1421F					355.6 mm	533.4 mm	101.6 mm	84.1 KG
G-2308-B					355.6 mm	622.3 mm	115.89 mm	0
T14520	TRTB14520				368.3 mm	603.3 mm	120.65 mm	144 KG
T16021	T-116021	TRTB16021	T-16021	160 TTHD 064	406.4 mm	711.2 mm	146.05 mm	259.63 KG
T16050	T-116050	TRTB16050	T-16050	160 TTHD 065	406.4 mm	838.2 mm	177.8 mm	517 KG
T16050F					406.4 mm	838.2 mm	177.8 mm	501.5 KG
B-8948-G					406.4 mm	914.4 mm	190.5 mm	721 KG
T20020					508 mm	990.6 mm	196.85 mm	735 KG
XC2102					1003.07 mm	1117.6 mm	50.8 mm	64.2 KG
XC2101					1162.05 mm	1282.7 mm	52.39 mm	79.9 KG
T48000					1219.2 mm	1524 mm	136.53 mm	596 KG

Our other Hot Sale Bearings

Our Company Photo:

About Us:

1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications

FAQ

	Q:Are you a trader or manufacturer?
	A:We are factory specializing in all kind of bearings. We can give you the best price and better service.
	Q:What is your delivery time?
	A:Sample order: Immediate delivery , bulk order: usually 30 days.
	Q:Can i request sample?
	A:Of course , sample is ok and we can give you a sample by free.
	Q:What's the shipping way?
	A:According to YOUR demands.
	Q:Can you accept OEM or ODM?
	A:Yes, of course. logo is also acceptable.
	Q:How is quality controlled?
	A:Quality is the key !
	Our QC team and engineer team works through all the process from an order placed to shipped.
	Q: Can I come for a visit?
	You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule.

High Precision TRTB651 Thrust Tapered Roller Bearing For Oil Well Drill Pipe, Get Cheap Price From China Bearing Factory Now !
