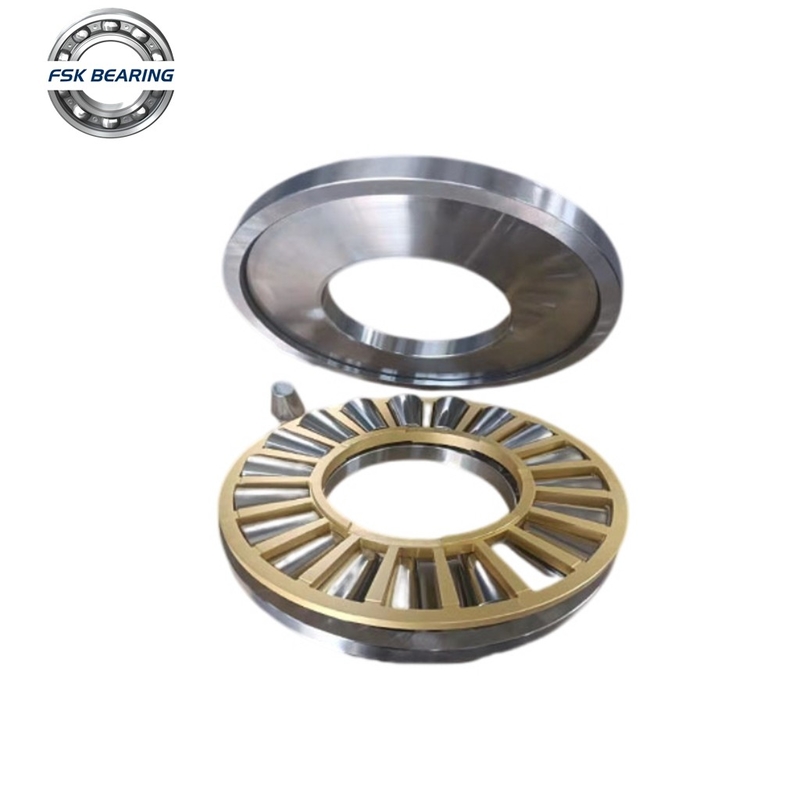

Imperial T1115-902A1 Thrust Tapered Roller Bearing Shaft ID 279.4mm Axial Load

Imperial T1115-902A1 Thrust Tapered Roller Bearing Shaft ID 279.4mm Axial Load

 Bearing Specification :

Bearings Detailed Pictures

Same Series Bearing We do:

Part Number	d - Bore Diameter	D - Bearing O.D.	T - Bearing Width	Weight(kg)	Static Load Rating	Dynamic Load Rating
T135-902A1	34.93	3 in 76.2 mm	0.625 in 15.875 mm	0.40	71200 lbf 320000 N	7130 lbf 30000 N
T1750-902A1	44.45	3.336 in 84.734 mm	0.7188 in 18.258 mm	0.50	97700 lbf 430000 N	9460 lbf 40000 N
T1750-90010	44.45	3.336 in 84.734 mm	0.7188 in 18.258 mm	0.50	97700 lbf 430000 N	9460 lbf 40000 N
T200A-902A1	50.80	4.3125 in 109.538 mm	0.875 in 22.225 mm	1.10	181000 lbf 800000 N	16400 lbf 70000 N
T200A-903A2	50.80	4.3125 in 109.538 mm	0.875 in 22.225 mm	1.10	181000 lbf 800000 N	16400 lbf 70000 N
T2520-902A1	63.50	4.6250 in 117.475 mm	1 in 25.4 mm	1.30	180000 lbf 800000 N	16900 lbf 80000 N
T2520-903A2	63.50	4.6250 in 117.475 mm	1 in 25.4 mm	1.30	180000 lbf 800000 N	16900 lbf 80000 N
30TTHD013	76.20	6-3/8 in 161.925 mm	1.312 in 33.325 mm	3.50	405000 lbf 1800000 N	37900 lbf 170000 N
T311-902A1	76.20	6-3/8 in 161.925 mm	1.3215 in 33.338 mm	3.50	395000 lbf 1760000 N	34200 lbf 150000 N
T311F-902A3	76.20	6-3/8 in 161.925 mm	1.3215 in 33.338 mm	3.50	545000 lbf 2440000 N	281000 lbf 1250000 N
T311-903A2	76.20	6-3/8 in 161.925 mm	1.3215 in 33.338 mm	3.50	395000 lbf 1760000 N	34200 lbf 150000 N
T411-902A4	101.60	8.5000 in 215.900 mm	1.8125 in 46.038 mm	8.90	682000 lbf 3030000 N	56800 lbf 250000 N
T411F-902A5	101.60	8.5000 in 215.900 mm	1.8125 in 46.038 mm	8.90	945000 lbf 4200000 N	485000 lbf 2160000 N
T411-903A2	101.60	8.5000 in 215.900 mm	1.8125 in 46.038 mm	8.90	682000 lbf 3030000 N	56800 lbf 250000 N
T441-902A1	111.76	8.8 in 223.52 mm	2.2 in 55.88 mm	11.40	727000 lbf 3230000 N	60700 lbf 270000 N
T441-903A2	111.76	8.8 in 223.52 mm	2.2 in 55.88 mm	11.40	727000 lbf 3230000 N	60700 lbf 270000 N
T451-902A1	114.30	9.8750 in 250.825 mm	2.125 in 53.975 mm	14.03	985000 lbf 4380000 N	79100 lbf 350000 N
T520-902A3	127.00	9.8750 in 250.825 mm	2.1875 in 55.563 mm	13.90	831000 lbf 3700000 N	69500 lbf 310000 N
F-530-A	127.00	10.5 in 266.7 mm	2.3125 in 58.738 mm	10.50	1060000lbf 4720000 N	60100 lbf 265000 N
T511-902A3	127.00	10.5 in 266.7 mm	2.3125 in 58.738 mm	18.36	1030000lbf 4580000 N	83600 lbf 370000 N
T511F-902A5	127.00	10.5 in 266.7 mm	2.3125 in 58.738 mm	17.80	1430000lbf 6350000 N	730000 lbf 3260000 N
T511-903A2	127.00	10.5 in 266.7 mm	2.3125 in 58.738 mm	17.80	1030000lbf 4580000 N	83600 lbf 370000 N
T511A-902A4	128.59	10.5 in 266.7 mm	2.3125 in 58.738 mm	17.80	1030000lbf 4580000 N	83600 lbf 370000 N
T9250FA-90015	139.70	21.5000 in 546.1 mm	5 in 127 mm	191.30	7050000lbf 31200000 N	3600000lbf 16050000 N
N-3247-A	152.40	11.5000 in 292.100 mm	3 in 76.2 mm	26.30	1150000lbf 5120000 N	83680 lbf 370000 N
T611-902A1	152.40	12.5000 in 317.500 mm	2.75 in 69.85 mm	28.40	1500000 lbf 6660000 N	118000 lbf 530000 N
T611F-902A2	152.40	12.5000 in 317.500 mm	2.75 in 69.85 mm	29.30	2070000 lbf 9200000 N	1060000 lbf 4750000 N
N-3255-A	152.40	12.5000 in 317.500 mm	3.5 in 88.9 mm	38.80	1530000 lbf 6810000 N	106200 lbf 470000 N
T611-90016	152.40	12.5000 in 317.500 mm	2.75 in 69.85 mm	28.40	1500000 lbf 6660000 N	118000 lbf 530000 N
XC2107-902A1	165.10	12 in 304.8 mm	3 in 76.2 mm	29.30	1200000 lbf 5340000 N	99300 lbf 440000 N
T651-902A1	165.10	12.25 in 311.15 mm	3.5 in 88.9 mm	38.30	1290000 lbf 5730000 N	105000 lbf 470000 N
T661-902A1	168.28	12 in 304.8 mm	2.75 in 69.85 mm	23.50	1200000 lbf 5340000 N	99300 lbf 440000 N
T661-90010	168.28	12 in 304.8 mm	2.75 in 69.85 mm	23.50	1200000 lbf 5340000 N	99300 lbf 440000 N
T691-902A1	174.63	14.1250 in 358.775 mm	3.25 in 82.55 mm	43.00	1770000 lbf 7870000 N	139000 lbf 620000 N
T711-902A1	177.80	14.5000 in 368.300 mm	3.25 in 82.55 mm	48.40	2010000 lbf 8950000 N	156000 lbf 690000 N
T711F-902A3	177.80	14.5000 in 368.300 mm	3.25 in 82.55 mm	48.40	2790000 lbf 12400000 N	1430000 lbf 6350000 N
T709-902A1	177.80	17.0000 in 431.800 mm	4 in 101.6 mm	86.30	3060000 lbf 13600000 N	231000 lbf 1030000 N
T7519-902A1	190.00	14 in 355.6 mm	2.922 in 74.219 mm	35.90	1560000 lbf 6950000 N	127000 lbf 560000 N
A-3783-B	190.00	14 in 355.6 mm	3.615 in 91.821 mm	49.00	1960000 lbf 8710000 N	139000 lbf 620000 N
N-3239-A	190.50	14.5000 in 368.300 mm	3-3/4 in 95.25 mm	53.00	2080000 lbf 9250000 N	169000 lbf 750000 N
T811-902A1	203.20	16.5000 in 419.100 mm	3.625 in 92.075 mm	65.50	2560000 lbf 11400000 N	195000 lbf 870000 N
T811F-902A2	203.20	16.5000 in 419.100 mm	3.625 in 92.075 mm	66.00	3540000 lbf 15750000 N	1820000 lbf 8100000 N
T811V-90013	203.20	16.5000 in 419.100 mm	3.625 in 92.075 mm	65.50	2560000 lbf 11400000 N	195000 lbf 870000 N
N-3263-A	206.38	16.5000 in 419.100 mm	4-3/4 in 120.65 mm	90.70	2920000 lbf 13000000 N	219000 lbf 970000 N
XC760-902A3	206.38	16.5000 in 419.100 mm	4-3/4 in 120.65 mm	88.20	2560000 lbf 11400000 N	195000 lbf 870000 N
T9020-902A1	228.60	17.0000 in 431.800 mm	3.495 in 88.773 mm	65.70	2450000 lbf 10900000 N	192000 lbf 850000 N
T911-902A2	228.60	19.0000 in 482.600 mm	4-1/8 in 104.775 mm	100.00	3420000 lbf 15200000 N	256000 lbf 1140000 N
T911A-902A4	234.95	19.0000 in 482.600 mm	4-1/8 in 104.775 mm	98.00	3420000 lbf 15200000 N	256000 lbf 1140000 N
T921-902A1	234.95	21.5000 in 546.1 mm	5 in 127 mm	171.00	4780000 lbf 21300000 N	353000 lbf 1570000 N
T921F-902A4	234.95	21.5000 in 546.1 mm	5 in 127 mm	171.00	6750000 lbf 30000000 N	3500000 lbf 15550000 N
N-3235-A	241.30	19.5000 in 495.300 mm	5 in 127 mm	140.00	4180000 lbf 18600000 N	298000 lbf 1320000 N
N-3517-A	241.30	19.5000 in 495.300 mm	5 in 127 mm	137.00	4280000 lbf 19000000 N	357000 lbf 1590000 N
T1011-902A1	254.00	21.2500 in 539.750 mm	4 5/8 in 117.475 mm	147.00	4350000 lbf 19400000 N	319000 lbf 1420000 N
N-3243-A	273.05	21.7500 in 552.450 mm	5-1/4 in 133.35 mm	173.00	5030000 lbf 22400000 N	371000 lbf 1650000 N
N-3259-A	273.05	22.31 in 566.674 mm	7 in 177.8 mm	254.00	5590000 lbf 24900000 N	393000 lbf 1750000 N
N-3251-A	273.05	23.7500 in 603.25 mm	5.75 in 146.05 mm	240.00	6230000 lbf 27700000 N	449000 lbf 2000000 N
N-3513-A	273.05	23.7500 in 603.25 mm	5.75 in 146.05 mm	235.00	6260000 lbf 27900000 N	498000 lbf 2220000 N
T1115-902A1	279.40	19.5000 in 495.300 mm	5-1/4 in 133.35 mm	125.00	3150000 lbf 14000000 N	245000 lbf 1090000 N
T1120-902A1	279.40	23.7500 in 603.25 mm	5 3/8 in 136.525 mm	220.00	5690000 lbf 25300000 N	408000 lbf 1810000 N
T1120F-902A2	279.40	23.7500 in 603.25 mm	5 3/8 in 136.525 mm	212.00	7870000 lbf 35000000 N	4040000 lbf 18000000 N
T1421-902A1	355.60	21.0000 in 533.400 mm	4 in 101.6 mm	77.20	2710000 lbf 12100000 N	189000 lbf 840000 N
G-2308-B	355.60	24.5000 in 622.300 mm	4.5625 in 115.888 mm	101.00	5950000 lbf 26500000 N	419000 lbf 1860000 N
T14520-902A1	368.30	23.7500 in 603.3 mm	4-3/4 in 120.65 mm	82.90	4060000 lbf 18100000 N	319000 lbf 1420000 N
T16050-902A1	406.40	33.0000 in 838.200 mm	7 in 177.8 mm	517.00	10800000 lbf 48000000 N	747000 lbf 3320000 N
T16050F-902A2	406.40	33.0000 in 838.200 mm	7 in 177.8 mm	501.50	15000000 lbf 66500000 N	7650000 lbf 34200000 N
B-8948-G	406.40	36.0000 in 914.400 mm	7-1/2 in 190.5 mm	721.00	18200000 lbf 81000000 N	1220000 lbf 5430000 N
T20020-902A2	508.00	39.0000 in 990.600 mm	7 3/4 in 196.85 mm	735.00	15000000 lbf 66700000 N	1020000 lbf 4530000 N
T48000-902A1	1219.20	60 in 1524 mm	5 3/8 in 136.525 mm	596.00	16800000 lbf 74800000 N	775000 lbf 3450000 N

Our other Hot Sale Bearings

Our Company Photo:

About Us:

1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications

FAQ

	Q:Are you a trader or manufacturer?
	A:We are factory specializing in all kind of bearings. We can give you the best price and better service.
	Q:What is your delivery time?
	A:Sample order: Immediate delivery , bulk order: usually 30 days.
	Q:Can i request sample?
	A:Of course , sample is ok and we can give you a sample by free.
	Q:What's the shipping way?
	A:According to YOUR demands.
	Q:Can you accept OEM or ODM?
	A:Yes, of course. logo is also acceptable.
	Q:How is quality controlled?
	A:Quality is the key !
	Our QC team and engineer team works through all the process from an order placed to shipped.
	Q: Can I come for a visit?
	You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule.

Imperial T1115-902A1 Thrust Tapered Roller Bearing Shaft ID 279.4mm Axial Load, Get Cheap Price From China Bearing Factory Now !

Contact With Us Freely :
