Product Details
Place of Origin: CHINA
Brand Name: TIMKEN / NSK / NTN / FSKG / KBE / OEM
Certification: ISO9001-2000 / SGS / BV / CE / IAF
Model Number: SN 322
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs-5pcs
Price: 0.1-200USD
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING
Delivery Time: 3-7Days After Deposit
Payment Terms: 30% Deposit , Balance After BL Copy
Supply Ability: 100000pcs/month
Model No.: |
SN 322 |
SN 322 BearingSize: |
110*450*150mm |
SN 322 Bearing Kg: |
28.9kg |
Quality: |
ABEC-5 |
Material: |
Cast Iron / Cast Steel |
Same Bearing: |
SN322Bearing |
Model No.: |
SN 322 |
SN 322 BearingSize: |
110*450*150mm |
SN 322 Bearing Kg: |
28.9kg |
Quality: |
ABEC-5 |
Material: |
Cast Iron / Cast Steel |
Same Bearing: |
SN322Bearing |
FSK Brand SN 322 Spilit Plummer Block Housing 110*450*150mm
Bearing Specification :
FSK BEARING Model Number | SN 322 |
Part Name | Plummer Block Housing |
Material | Cast Iron / Cast Steel |
Cage | Steel Cage |
Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
Precision Rating | ABEC-3 / ABEC-5 |
Dimensions(mm)(d*D*b) | 110*450*150mm |
Weight / Mass ( KG ) | 28.9kg |
HS Code | 8482800000 |

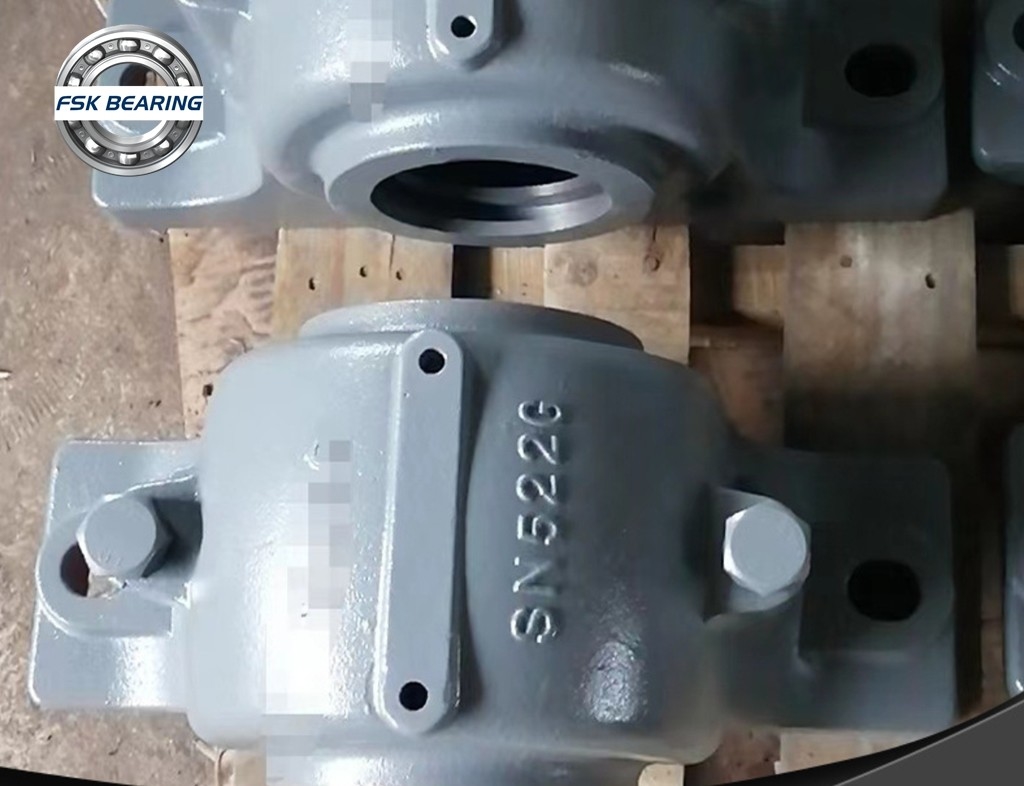

Bearings Detailed Pictures
Same Series Bearings We Do:
Plummer Blocks (Bearing housings) SN 300 Series Suitable for Bearings with adapter sleeves |
|||||||||||||||||
Plummer Block Designation | Shaft dia (d) | DIMENSION IN MM | Approx Weight kg. | Bearing with Adapter Sleeve | Locating Rings | Felt Strip No | |||||||||||
Size Width/Dia | Nos. Per Hsg. |
||||||||||||||||
mm | inch | L | H | A | B | E | V | S | Ca | N | N1 | ||||||
SN 315 | 75 | 85 | 140 | 100 | 345 | 100 | 290 | 35 | 20 | 65 | 27 | 22 | 11.65 | 1315 21315 2315 22315 C |
14/160 14/160 10/160 10/160 |
2 2 1 1 |
FS 330 |
SN 316 | 80 | 90 | 145 | 112 | 345 | 100 | 290 | 35 | 20 | 68 | 27 | 22 | 12.5 | 1316 21316 2316 22316 C |
14.5/170 14.5/170 10/170 10/170 |
2 2 1 1 |
FS370 |
SN 317 | 85 | 95 | 155 | 112 | 380 | 110 | 320 | 40 | 24 | 70 | 32 | 26 | 15 | 1317 21317 2317 22317 C |
14.5/180 14.5/180 10/180 10/180 |
2 2 1 1 |
FS370 |
SN 318 | 90 | 105 | 160 | 112 | 380 | 110 | 320 | 40 | 24 | 74 | 32 | 26 | 16.8 | 1318 21318 2318 22318 C |
15.5/190 15.5/190 10/190 10/190 |
2 2 1 1 |
FS460 |
SN 319 | 95 | 110 | 170 | 125 | 410 | 120 | 350 | 45 | 24 | 77 | 32 | 26 | 20.5 | 1319 21319 2319 22319 C |
16/200 16/200 10/200 10/200 |
2 2 1 1 |
FS460 |
SN 320 | 100 | 115 | 175 | 140 | 410 | 120 | 350 | 45 | 24 | 83 | 32 | 26 | 22.8 | 1320 21320 2320 22320 C |
18/215 18/215 10/215 10/215 |
2 2 1 1 |
FS 460 |
SN 322 | 110 | 125 | 190 | 150 | 450 | 130 | 390 | 50 | 24 | 90 | 35 | 28 | 28.9 | 21322 22322 C |
20/240 10/240 |
2 1 |
FS510 |
SN 324 | 120 | 135 | 200 | 160 | 530 | 160 | 450 | 60 | 30 | 96 | 42 | 35 | 35.8 | 20324 22324 C |
20.5/260 10/260 |
2 1 |
FS510 |
SN 326 | 130 | 150 | 210 | 170 | 550 | 160 | 470 | 60 | 30 | 103 | 42 | 35 | 50.5 | 20326 22326 C |
22.5/280 10/280 |
2 1 |
FS 680 |
SN 328 | 140 | 160 | 235 | 180 | 620 | 170 | 520 | 65 | 30 | 112 | 42 | 35 | 81.0 | 20328 22328 C |
25/300 10/300 |
2 1 |
FS680 |
SN 330 | 150 | 170 | 245 | 190 | 650 | 180 | 560 | 65 | 30 | 118 | 42 | 35 | 92.0 | 20330 22330 C |
26.5/320 10/320 |
2 1 |
FS 680 |
SN 332 | 160 | 180 | 255 | 200 | 680 | 190 | 580 | 70 | 36 | 124 | 50 | 42 | 100.0 | 20332 22332 C |
28/340 10/340 |
2 1 |
FS680 |
Our other Hot Sale Bearings
INA TIMKEN NSK KOYO NACHI NTN ASAHI FYH | Tapered Roller Bearing | 30200.30300.32200.32300.32000.33000 |
Inched | ||
Deep Groove Ball Bearing | 6000.6200.6300.6400.6800 | |
Miniature Ball Bearing | ||
Truck Wheel Bearing | 800792 A VKBA 5412 566425.H195 BTH 0022 | |
Automobile Wheel Bearing | VKBA1343 DAC34620037 BA2B633313CA etc | |
Air Conditioner Bearing | 30BD219 30BD40 30BD5222 | |
Clutch Release Bearing | 68TKA3506AR TK701A1 78TK14001AR 54TKA3501 | |
Spherical Roller Bearing | 22200 22300 23000 CC CA E | |
Cylindrical Roller Bearing | good at LINK BELT cylindrical roller bearings | |
Pillow Block Bearing with Housing | UCP UCF UCT UCFL UCFC etc | |
Needle Roller Bearing | Full types of needle roller bearings | |
Printing Machine Bearings | F series with needle roller and cylindrical roller structure |
Our Company Photo:
About Us:
1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications
FAQ
![]() |
Q:Are you a trader or manufacturer? |
A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
Q:What is your delivery time? | |
A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
Q:Can i request sample? | |
A:Of course , sample is ok and we can give you a sample by free. | |
Q:What's the shipping way? | |
A:According to YOUR demands. | |
Q:Can you accept OEM or ODM? | |
A:Yes, of course. logo is also acceptable. | |
Q:How is quality controlled? | |
A:Quality is the key ! | |
Our QC team and engineer team works through all the process from an order placed to shipped. | |
Q: Can I come for a visit? | |
You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
FSK Brand SN 322 Spilit Plummer Block Housing 110*450*150mm , Get Cheap Price from China Bearing Factory Now !
