Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: NK 35/30TN
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Let's Chat in Detail
Packaging Details: 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Delivery Time: 3 Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Model No.: |
NK 35/30 |
NK 35/30 Bearing Size: |
35 X 45 X 30 Mm |
NK 35/30 Bearing Kg: |
0.11kg |
Sample: |
Available, 2-3 Working Days |
Feature: |
Without Inner Ring |
Same Bearing: |
NK 3530 Bearings/ NK 35/30 Bearing / NK 35/30 TN Bearing / NK35/30-TV-XL Bearing |
Model No.: |
NK 35/30 |
NK 35/30 Bearing Size: |
35 X 45 X 30 Mm |
NK 35/30 Bearing Kg: |
0.11kg |
Sample: |
Available, 2-3 Working Days |
Feature: |
Without Inner Ring |
Same Bearing: |
NK 3530 Bearings/ NK 35/30 Bearing / NK 35/30 TN Bearing / NK35/30-TV-XL Bearing |
NK 35/30 TAF 354530 Needle Roller Bearings without Innner Ring Small Clearance
NK 3530 Bearing Specification :
|
Model Number |
NK 35/30 |
|
Part Name |
Needle Roller Bearing |
| Feature | without Inner Ring |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-5 / ABEC-7 |
| Material | Gcr15 Chrome Steel |
|
Dimensions(mm)(d*D*b) |
35 x 45 x 30 mm |
|
Weight / Mass ( KG ) |
0.11kg |
|
HS Code |
8482800000 |
| Original Country Show | CHINA |
FSK NK Series Bearing We Do:
|
||||
| Bearing Number | d | D | H | m |
| NK5/10-TV-XL | 5 mm | 10 mm | 10 mm | 3.1 g |
| NK5/12-TV-XL | 5 mm | 10 mm | 12 mm | 3.7 g |
| NK6/10-TV-XL | 6 mm | 12 mm | 10 mm | 4.7 g |
| NK6/12-TV-XL | 6 mm | 12 mm | 12 mm | 5.7 g |
| NK7/10-TV-XL | 7 mm | 14 mm | 10 mm | 6.9 g |
| NK7/12-TV-XL | 7 mm | 14 mm | 12 mm | 8.2 g |
| NK8/12-TV-XL | 8 mm | 15 mm | 12 mm | 8.7 g |
| NK8/16-TV-XL | 8 mm | 15 mm | 16 mm | 12 g |
| NK9/12-TV-XL | 9 mm | 16 mm | 12 mm | 10.3 g |
| NK9/16-TV-XL | 9 mm | 16 mm | 16 mm | 12.8 g |
| NK10/12-TV-XL | 10 mm | 17 mm | 12 mm | 10.1 g |
| NK10/16-TV-XL | 10 mm | 17 mm | 16 mm | 13.3 g |
| NK12/12-XL | 12 mm | 19 mm | 12 mm | 12.1 g |
| NK12/16-XL | 12 mm | 19 mm | 16 mm | 15.9 g |
| NK14/16-XL | 14 mm | 22 mm | 16 mm | 20.7 g |
| NK14/20-XL | 14 mm | 22 mm | 20 mm | 25.5 g |
| NK15/16-XL | 15 mm | 23 mm | 16 mm | 21.8 g |
| NK15/20-XL | 15 mm | 23 mm | 20 mm | 26.6 g |
| F-110601.1 | 16 mm | 23 mm | 16 mm | 19 g |
| F-90525 | 16 mm | 23 mm | 22 mm | 25.6 g |
| NK16/16-XL | 16 mm | 24 mm | 16 mm | 22.4 g |
| NK16/20-XL | 16 mm | 24 mm | 20 mm | 28.4 g |
| NK17/16-XL | 17 mm | 25 mm | 16 mm | 23.7 g |
| NK17/20-XL | 17 mm | 25 mm | 20 mm | 29.8 g |
| NK18/16-XL | 18 mm | 26 mm | 16 mm | 24.9 g |
| NK18/20-XL | 18 mm | 26 mm | 20 mm | 31.4 g |
| F-110252 | 19 mm | 27 mm | 20 mm | 35 g |
| NK19/16-XL | 19 mm | 27 mm | 16 mm | 26.1 g |
| NK19/20-XL | 19 mm | 27 mm | 20 mm | 32.2 g |
| F-45778 | 19.05 mm | 32.26 mm | 19.5 mm | 61.7 g |
| F-4650 | 20 mm | 28 mm | 16 mm | 29.2 g |
| NK20/16-XL | 20 mm | 28 mm | 16 mm | 27 g |
| NK20/20-XL | 20 mm | 28 mm | 20 mm | 33.9 g |
| NK21/16-XL | 21 mm | 29 mm | 16 mm | 28.1 g |
| NK21/20-XL | 21 mm | 29 mm | 20 mm | 35.2 g |
| NK22/16-XL | 22 mm | 30 mm | 16 mm | 30 g |
| NK22/20-XL | 22 mm | 30 mm | 20 mm | 37 g |
| F-4644 | 22 mm | 35 mm | 20 mm | 73.3 g |
| NK24/16-XL | 24 mm | 32 mm | 16 mm | 31.9 g |
| NK24/20-XL | 24 mm | 32 mm | 20 mm | 40 g |
| NK25/16-XL | 25 mm | 33 mm | 16 mm | 32.6 g |
| NK25/20-XL | 25 mm | 33 mm | 20 mm | 42 g |
| NK26/16-XL | 26 mm | 34 mm | 16 mm | 34 g |
| NK26/20-XL | 26 mm | 34 mm | 20 mm | 42 g |
| F-45397.2 | 27 mm | 42.86 mm | 25.4 mm | 118.7 g |
| NK28/20-XL | 28 mm | 37 mm | 20 mm | 52.2 g |
| NK28/30-XL | 28 mm | 37 mm | 30 mm | 82 g |
| F-201379 | 28.58 mm | 41.28 mm | 25.4 mm | 102 g |
| F-110036 | 28.58 mm | 41.28 mm | 25.4 mm | 107.9 g |
| F-45779 | 28.59 mm | 46.04 mm | 31.75 mm | 198.3 g |
| NK29/20-TV-XL | 29 mm | 38 mm | 20 mm | 50 g |
| NK29/30-XL | 29 mm | 38 mm | 30 mm | 84.3 g |
| NK30/20-TV-XL | 30 mm | 40 mm | 20 mm | 61 g |
| NK30/30-TV-XL | 30 mm | 40 mm | 30 mm | 92.4 g |
| NK32/20-TV-XL | 32 mm | 42 mm | 20 mm | 64 g |
| NK32/30-XL | 32 mm | 42 mm | 30 mm | 102 g |
| F-52521.2 | 32.77 mm | 49.21 mm | 28.58 mm | 171.2 g |
| F-51201 | 33 mm | 48 mm | 15 mm | 70.9 g |
| F-45898 | 33 mm | 50.98 mm | 20 mm | 122.1 g |
| NK35/20-TV-XL | 35 mm | 45 mm | 20 mm | 69.4 g |
NK 3530 Bearings Drawing :

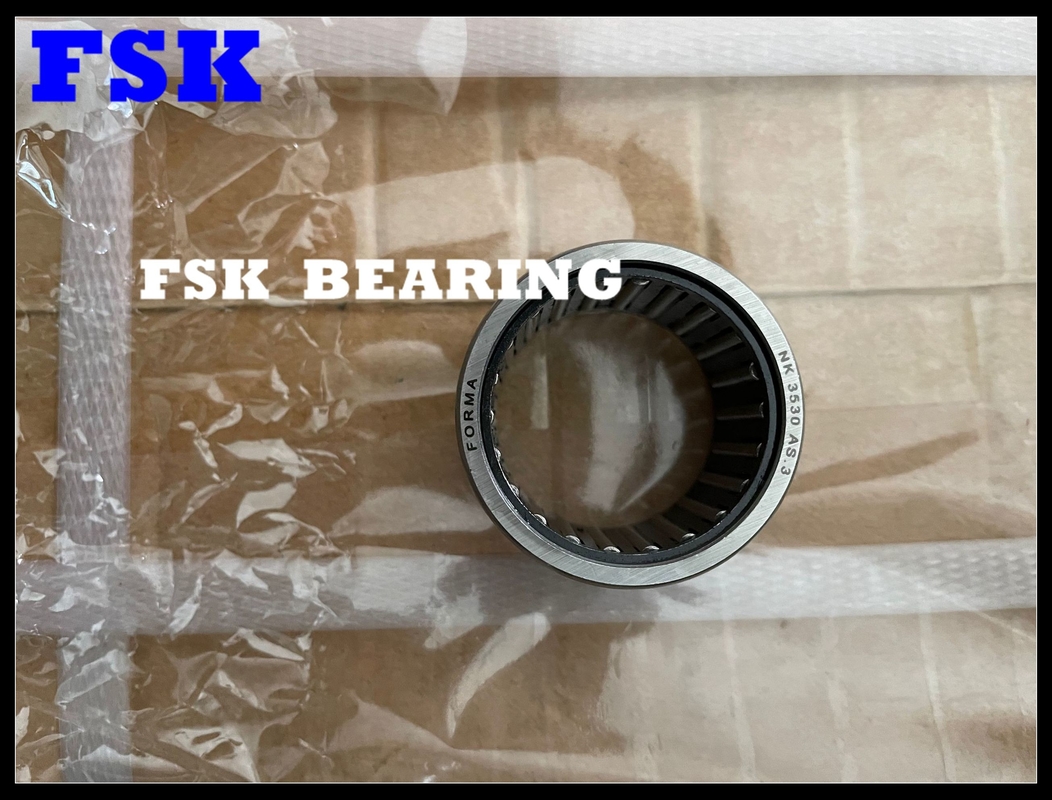

NK 3530 Bearings Detailed Pictures :
About FSK Bearing Company:
Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required to fit shaft
