Product Details
Place of Origin: CHINA
Brand Name: FSK / OEM / NTN / NSK / KOYO / FAG
Certification: ISO9001-2000 / CE / ROHS / UL / SGS
Model Number: NAV4005
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Model No.: |
NAV4005 Bearing |
Size(Metric): |
25mm × 47mm × 22mm |
Weight: |
0.195kg |
Measurement: |
NAV4005 Bearing Kg: 0.195kg / NAV4005 Bearing Size : 25mm × 47mm × 22mm |
Feature: |
With Inner Ring |
Structure: |
Needle Roller Bearings |
Model No.: |
NAV4005 Bearing |
Size(Metric): |
25mm × 47mm × 22mm |
Weight: |
0.195kg |
Measurement: |
NAV4005 Bearing Kg: 0.195kg / NAV4005 Bearing Size : 25mm × 47mm × 22mm |
Feature: |
With Inner Ring |
Structure: |
Needle Roller Bearings |
Full Complement NAV4005 NAV4005K NAV Series Needle Roller Bearings with Inner Ring
NAV4005 Bearing Specification :
| Model Number | NAV4005 |
| Part Name | Needle Roller Bearings |
| Feature | with Inner Ring |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 25mm × 47mm × 22mm |
| Weight / Mass ( KG ) | 0.195kg |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FSK / OEM / NTN / NSK / KOYO / FAG |
| Original Country Show | CHINA ( FSK ) |
| HS Code | 8482800000 |
NAV4005 Bearing Drawing:

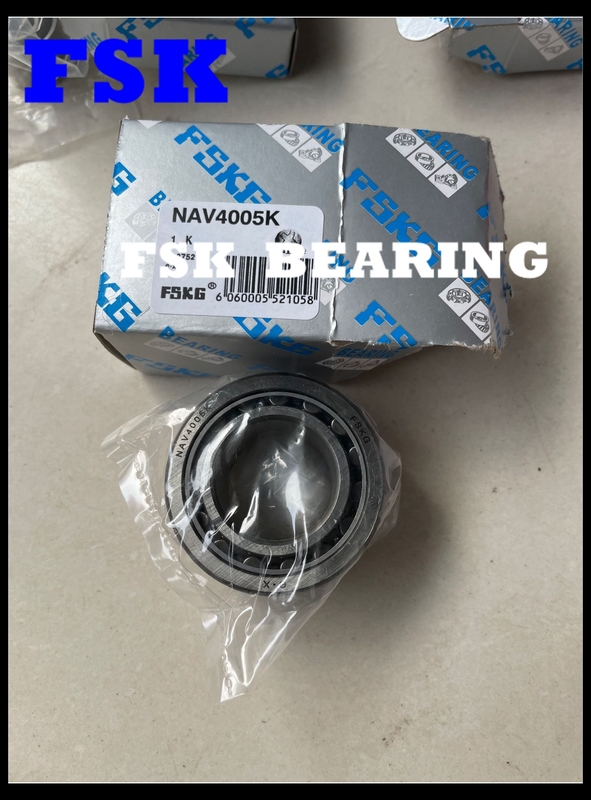

NAV4005 Bearing Photo:
Same Application Bearings We Do:
|
|||||||||
| Shaft ID | Bearing | Mass | Specification | Basic Load | Limited Speed | ||||
| mm | Current Model | Old Model | g | Fw | D | C | Dynamic | Static | Oil |
| Without Inner Ring | |||||||||
| 21.87 | RNAV 4002 | 4084102 | 45 | 21.87 | 32 | 17 | 10800 | 29800 | 4500 |
| 24.3 | RNAV 4003 | 4084103 | 62 | 24.3 | 35 | 18 | 17900 | 37900 | 4300 |
| 28.7 | RNAV 4004 | 4084104 | 114 | 28.7 | 42 | 22 | 28150 | 60900 | 3900 |
| 33.5 | RNAV 4005 | 4084105 | 129 | 33.5 | 47 | 22 | 33800 | 70800 | 3700 |
| 40.1 | RNAV 4006 | 4084106 | 193 | 40.1 | 55 | 25 | 49900 | 96500 | 3500 |
| 45.9 | RNAV 4007 | 4084107 | 259 | 45.9 | 62 | 27 | 47600 | 122800 | 3100 |
| 51.6 | RNAV 4008 | 4084108 | 304 | 51.6 | 68 | 28 | 49900 | 137900 | 2700 |
| 57.4 | RNAV 4009 | 4084109 | 390 | 57.4 | 75 | 30 | 52500 | 153500 | 2600 |
| 62.4 | RNAV 4010 | 4084110 | 426 | 62.1 | 80 | 30 | 55700 | 166000 | 2500 |
| 69.8 | RNAV 4011 | 4084111 | 645 | 69.8 | 90 | 35 | 68500 | 225800 | 2300 |
| 74.6 | RNAV 4012 | 4084112 | 677 | 74.6 | 95 | 35 | 75400 | 239000 | 2100 |
| 80.3 | RNAV 4013 | 4084113 | 692 | 80.3 | 100 | 35 | 79500 | 256900 | 1900 |
| 88 | RNAV 4014 | 4084114 | 950 | 88 | 110 | 40 | 98800 | 354900 | 1700 |
| 92.7 | RNAV 4015 | 4084115 | 1000 | 92.7 | 115 | 45 | 101800 | 372900 | 1600 |
| 100.3 | RNAV 4016 | 4084116 | 1400 | 100.3 | 125 | 45 | 102900 | 373500 | 1500 |
| 104.8 | RNAV 4017 | 4084117 | 1540 | 104.8 | 130 | 45 | 103800 | 374800 | 1400 |
| With Inner Ring | Current Model | Old Model | g | Fw | D | C | Dynamic Cr | Static Cor | Limited Speed Grease |
| 15 | NAV 4002 | 4074102 | 76 | 15 | 32 | 17 | 10800 | 29800 | 4500 |
| 17 | NAV 4003 | 4074103 | 94 | 17 | 35 | 18 | 1700 | 37900 | 4300 |
| 20 | NAV 4004 | 4074104 | 170 | 20 | 42 | 22 | 28150 | 60900 | 3900 |
| 25 | NAV 4005 | 4074105 | 195 | 25 | 47 | 22 | 33800 | 70800 | 3700 |
| 30 | NAV 4006 | 4074106 | 299 | 30 | 55 | 25 | 49900 | 96500 | 3500 |
| 35 | NAV 4007 | 4074107 | 402 | 35 | 62 | 27 | 47600 | 122800 | 3100 |
| 40 | NAV 4008 | 4074108 | 482 | 40 | 68 | 28 | 49900 | 137900 | 2700 |
| 45 | NAV 4009 | 4074109 | 617 | 45 | 75 | 30 | 52500 | 153500 | 2600 |
| 50 | NAV 4010 | 4074110 | 669 | 50 | 80 | 30 | 55700 | 166000 | 2500 |
| 55 | NAV 4011 | 4074111 | 1030 | 55 | 90 | 35 | 68500 | 225800 | 2300 |
| 60 | NAV 4012 | 4074112 | 1087 | 60 | 95 | 35 | 75400 | 239000 | 2100 |
| 65 | NAV 4013 | 4074113 | 1156 | 65 | 100 | 35 | 79500 | 256900 | 1900 |
| 70 | NAV 4014 | 4074114 | 1666 | 70 | 110 | 40 | 98800 | 354900 | 1700 |
| 75 | NAV 4015 | 4074115 | 1762 | 75 | 115 | 45 | 101800 | 372900 | 1600 |
| 80 | NAV 4016 | 4074116 | 2450 | 80 | 125 | 45 | 102900 | 373500 | 1500 |
| 85 | NAV 4017 | 4074117 | 2500 | 85 | 130 | 45 | 103800 | 374800 | 1400 |
| 17 | 74703 | 126 | 17 | 35 | 24.5 | 8700 | 10800 | 4200 | |
| 15 | 74802 | 100 | 15 | 36 | 24.5 | 8900 | 11200 | 4400 | |
FSK Bearing Company Advantages:
(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
So we can get the trust of a large number of customers, and supply them for several years.
(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
We can also according to customer requirements change their own mark.
(3) Price, our manufacture ensure that our prices across China are quite competitive.
It is better for you to compare prices and quality among suppliers.
But everyone knows you can not buy the highest quality products with the lowest price,
but our product is the best quality if you use equal price.
