Wuxi FSK Transmission Bearing Co., Ltd fskbearing@hotmail.com 86-510-82713083
Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: 22213 E/C3
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Let's Chat in Detail
Packaging Details: 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Delivery Time: 3 Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Model No.: |
22213 E/C3 |
Size: |
65 × 120 × 31 Mm |
Weight: |
1.55 Kg |
Advantage: |
Low Vocie,high Speed, Long Life |
Feature: |
22213E/C3 Bearing / 22213 E C3 Bearing / 22213 E/C3 Bearing |
Row: |
Two Row |
Model No.: |
22213 E/C3 |
Size: |
65 × 120 × 31 Mm |
Weight: |
1.55 Kg |
Advantage: |
Low Vocie,high Speed, Long Life |
Feature: |
22213E/C3 Bearing / 22213 E C3 Bearing / 22213 E/C3 Bearing |
Row: |
Two Row |
Vibrating Screen 22213 E/C3 Spherical Roller Bearing Construction Machinery Bearing
Bearing Specification :
|
FSK BEARING Model Number |
22213 E/C3 |
|
Part Name |
Spherical Roller Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-1 to ABEC-9 |
| Material | Gcr15 Chrome Steel |
|
Dimensions(mm)(d*D*b) |
65 × 120 × 31 mm |
|
Weight / Mass ( KG ) |
1.55 kg |
|
HS Code |
8482800000 |
| Original Country Show | CHINA |

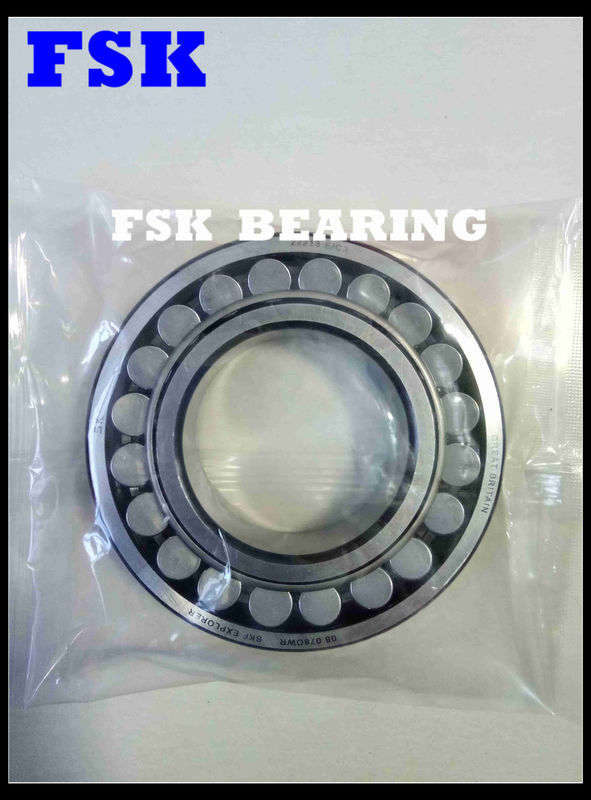

Bearings Detailed Pictures :
For Spherical Roller Bearings, the dimensional series are:
Spherical Roller Bearings are commonly used in agricultural machines such as combined harvesting machine, air-blower, paper-machine, textile machine, woodworking machinery, overhead crane moving wheel and driving shaft as well as a large number of non agricultural applications.
| Bearing Model | Specification(mm) | Dynamic Load | Static Load | Limied Speed(rpm) | Mass | |||||
| Round Hole | with Taper Hole | d | D | B | r | Cr(N) | Cor(N) | Grease | Oil | (kg) |
| (min) | ||||||||||
| 22212EX | 22212EXK | 60 | 110 | 28 | 1.5 | 151000 | 179000 | 3200 | 4000 | 1.2 |
| 22212AEX | 22212AEXK | 60 | 110 | 28 | 1.5 | 129000 | 144000 | 4100 | 5200 | 1.22 |
| 21312EX1 | 21312EX1K | 60 | 130 | 31 | 2.1 | 168000 | 193000 | 2800 | 3700 | 2.1 |
| 21312AX | 21312AXK | 60 | 130 | 31 | 2.1 | 164000 | 192000 | 3500 | 4500 | 2.19 |
| 22312EX | 22312EXK | 60 | 130 | 46 | 2.1 | 281000 | 330000 | 2800 | 3600 | 3.05 |
| 22312AEX | 22312AEXK | 60 | 130 | 46 | 2.1 | 244000 | 275000 | 3600 | 4600 | 3.01 |
| 22213EX | 22213EXK | 65 | 120 | 31 | 1.5 | 177000 | 209000 | 2800 | 3600 | 1.56 |
| 22213AEX | 22213AEXK | 65 | 120 | 31 | 1.5 | 153000 | 169000 | 3800 | 4800 | 1.6 |
| 21313EX1 | 21313EX1K | 65 | 140 | 33 | 2.1 | 194000 | 232000 | 2600 | 3400 | 2.6 |
| 21313AX | 21313AXK | 65 | 140 | 33 | 2.1 | 188000 | 222000 | 3000 | 4000 | 2.69 |
| 22313EX | 22313EXK | 65 | 140 | 48 | 2.1 | 300000 | 355000 | 2400 | 3200 | 3.67 |
| 22313AEX | 22313AEXK | 65 | 140 | 48 | 2.1 | 273000 | 310000 | 3300 | 4300 | 3.64 |
| 22214EX | 22214EXK | 70 | 125 | 31 | 1.5 | 185000 | 220000 | 2600 | 3400 | 1.65 |
| 22214AEX | 22214AEXK | 70 | 125 | 31 | 1.5 | 162000 | 185000 | 3600 | 4600 | 1.69 |
| 21314EX1 | 21314EX1K | 70 | 150 | 35 | 2.1 | 215000 | 260000 | 2400 | 3200 | 3.1 |
| 21314AX | 21314AXK | 70 | 150 | 35 | 2.1 | 220000 | 268000 | 3000 | 4000 | 3.3 |
| 22314EX | 22314EXK | 70 | 150 | 51 | 2.1 | 345000 | 415000 | 2200 | 3000 | 4.45 |
| 22314AEX | 22314AEXK | 70 | 150 | 51 | 2.1 | 320000 | 365000 | 3100 | 4000 | 4.46 |
| 22215EX | 22215EXK | 75 | 130 | 31 | 1.5 | 191000 | 234000 | 2400 | 3200 | 1.74 |
| 22215AEX | 22215AEXK | 75 | 130 | 31 | 1.5 | 168000 | 191000 | 3400 | 4400 | 1.76 |
| 21315EX1 | 21315EX1K | 75 | 160 | 37 | 2.1 | 245000 | 298000 | 2200 | 3000 | 3.8 |
| 21315AX | 21315AXK | 75 | 160 | 37 | 2.1 | 234000 | 286000 | 2500 | 3500 | 3.95 |
| 22315EX | 22315EXK | 75 | 160 | 55 | 2.1 | 395000 | 475000 | 2000 | 2800 | 5.44 |
| 22315AEX | 22315AEXK | 75 | 160 | 55 | 2.1 | 355000 | 415000 | 2900 | 3700 | 5.44 |
| 22216EX | 22216EXK | 80 | 140 | 33 | 2 | 215000 | 269000 | 2200 | 3000 | 2.19 |
| 22216AEX | 22216AEXK | 80 | 140 | 33 | 2 | 201000 | 230000 | 3200 | 4100 | 2.24 |
| 23216E | 23216EK | 80 | 140 | 44 | 2 | 241000 | 335000 | 2300 | 2500 | 2.95 |
| 21316EX1 | 21316EX1K | 80 | 170 | 39 | 2.1 | 275000 | 339000 | 2100 | 2800 | 4.5 |
| 21316AX | 21316AXK | 80 | 170 | 39 | 2.1 | 257000 | 318000 | 2500 | 3500 | 4.67 |
| 22316EX | 22316EXK | 80 | 170 | 58 | 2.1 | 430000 | 520000 | 1900 | 2600 | 6.42 |
| 22316AEX | 22316AEXK | 80 | 170 | 58 | 2.1 | 395000 | 465000 | 2700 | 3500 | 6.43 |
| 22217EX | 22217EXK | 85 | 150 | 36 | 2 | 255000 | 320000 | 2000 | 2800 | 2.75 |
| 22217AEX | 22217AEXK | 85 | 150 | 36 | 2 | 223000 | 260000 | 2800 | 3800 | 2.82 |
| 23217E | 23217EK | 85 | 150 | 49 | 2 | 285000 | 405000 | 2100 | 2400 | 3.78 |
| 21317EX1 | 21317EX1K | 85 | 180 | 41 | 3 | 300000 | 372000 | 2000 | 2600 | 5.3 |
| 21317AX | 21317AXK | 85 | 180 | 41 | 3 | 290000 | 364000 | 2500 | 3000 | 5.52 |
| 22317EX | 22317EXK | 85 | 180 | 60 | 3 | 480000 | 585000 | 1800 | 2400 | 7.46 |
| 22317AEX | 22317AEXK | 85 | 180 | 60 | 3 | 425000 | 500000 | 2600 | 3300 | 7.47 |
About FSK Bearing Company:
Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required to fit shaft
Our Service :
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
Vibrating Screen 22213 E/C3 Spherical Roller Bearing Construction Machinery Bearing ,Get Cheap Price from China Roller Bearing Factory Now !
